Air Intakes
Performance Air Intake System
Part #: 63-9034
Fits 2010-2024 Toyota, 17 vehicles
Description

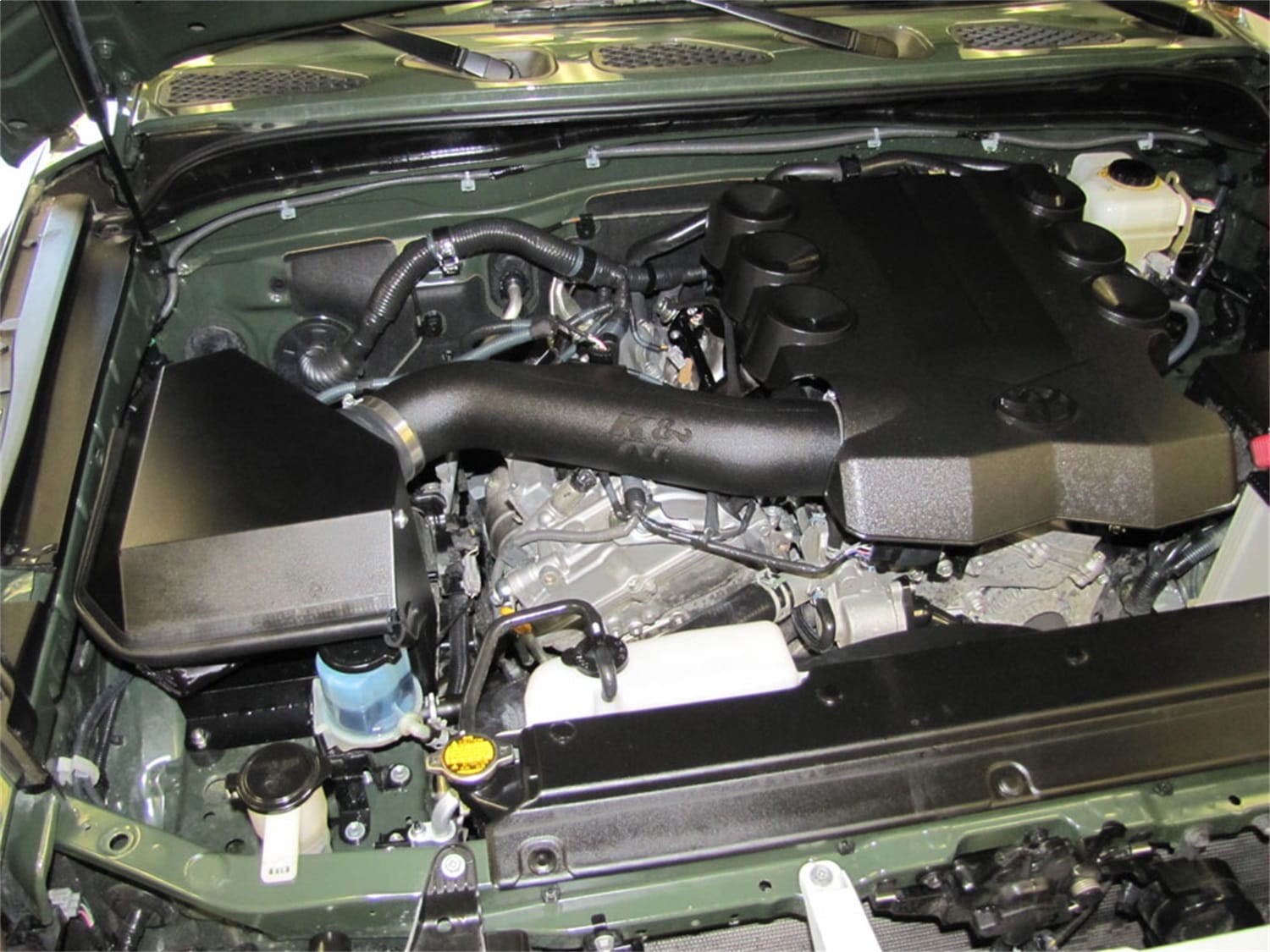

The K&N AirCharger 63-9034 air intake system replaces your vehicle's restrictive factory air filter and air intake housing. K&N intakes are designed to dramatically reduce intake restriction as they smooth and straighten air flow. This allows your vehicle's engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine's RPM range. The 63-9034 air intake comes with a chrome topped K&N high-flow air filter and a heat shield that installs into the previous air box space. This allows cooler, denser air to be directed through a custom molded intake tube into the engine's throttle body for a guaranteed power gain. The oversized air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install requiring only a screwdriver, pliers, socket set and several wrenches.
Compatibility
This part is compatible with 17 vehicles
Show all 17 vehiclesShow fewer
Specifications
- Brand
- K&N
- Category
- Air Intakes
- UPC
- 024844277053
- Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Shipping Dimensions
- 22.25 x 14.25 x 12.5 in
- Part Type
- Air Intake Kit
- Item Weight
- 14.100 lbs. (6.4 kg)
- Package Material
- Paperboard
- Package Type
- Box
- Product Box Height
- 12.500 in. (318mm)
- Product Box Length
- 22.250 in. (565mm)
- Product Box Width
- 14.250 in. (362 mm)
- Prop 65 (c, R Or Cr)
- CR
- Prop 65 Warning Label
- https://media.knfilters.com/prod/media/images/l/Prop65.jpg
- Title
- K&N 63-9034 Performance Air Intake System
- Mounting Hardware Included
- Yes
- Filter Material
- Cotton Gauze
- Oil Included
- Filter Is Pre-Oiled
- Clamp Style
- Regular
- Couplers Included
- 2
- Intake Pipe Material
- High-Density Cross-Linked Polyethylene
- California Restricted
- Not legal for sale or use in California
- Estimated Horse Power Gain
- 12.18 HP @ 4600 RPM
- Horse Power Increase
- 12 HP
- Rpm
- 4600
- Street Legal
- No
- Coupler Color
- Black
- Air Filter Element Washable
- Yes
- Air Box Included
- No
- Air Filter Outlet Shape
- Round
- Clamp Material
- Stainless Steel
- Replacement Filter
- RF-1048
- Tuv Approved (europe)
- No
- Intake Pipe Color
- Black
- Clamp Color
- Natural
- Clamp Quantity
- 5
- Filter Color
- Red
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Air Filter Height
- 8.000 in. (203mm)
- Air Filter Large End Diameter
- 7.500 in. (191mm)
- Air Filter Outlet Length
- 6.000 in. (152mm)
- Air Filter Outlet Width
- 6.000 in. (152mm)
- Prop 65 (C, R Or CR)
- CR
- TUV Approved (Europe)
- No
