Air Intakes
Performance Air Intake System
Part #: 69-3539TB
Fits 2016-2018 Ford, 3 vehicles
Description

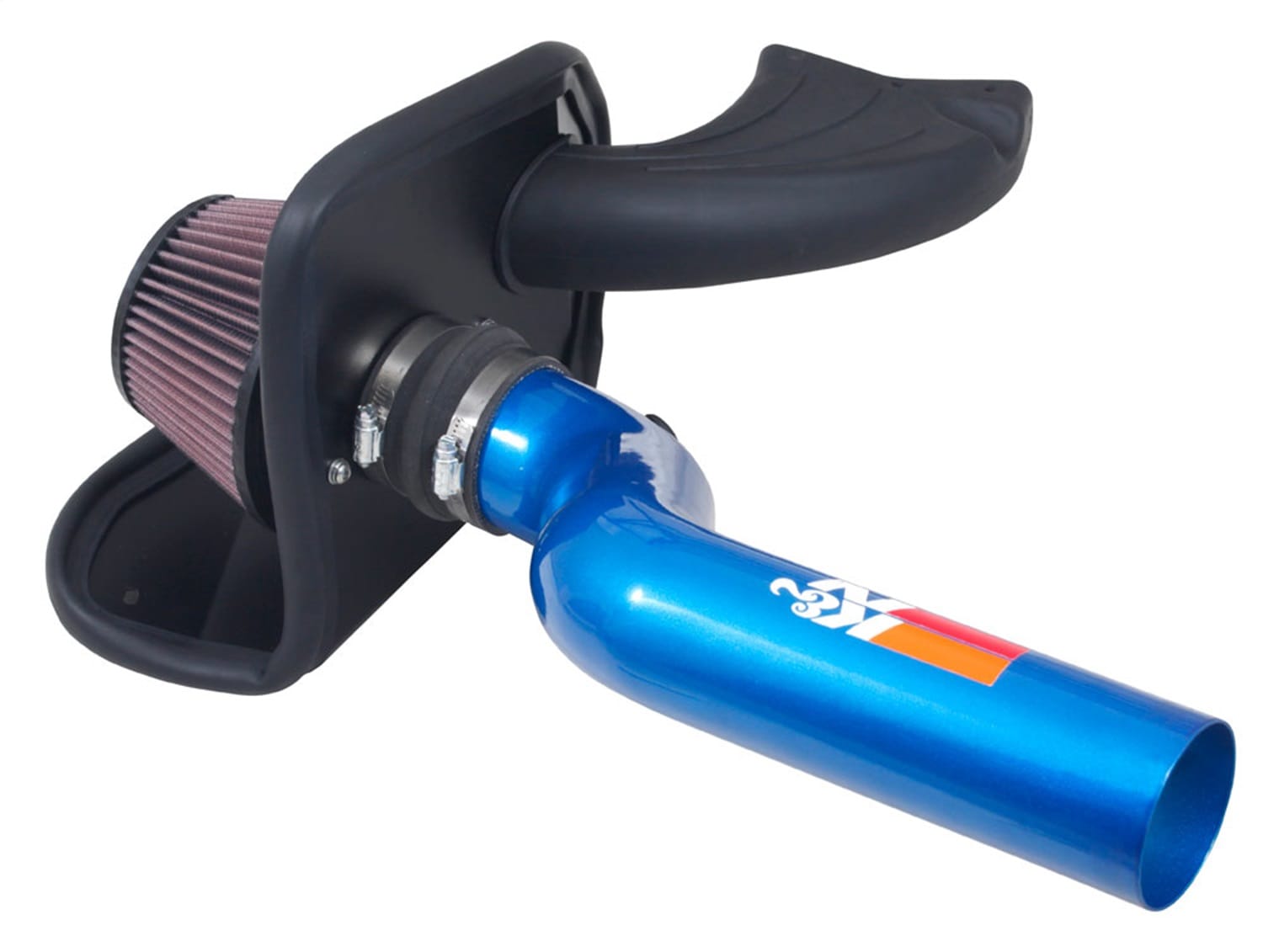

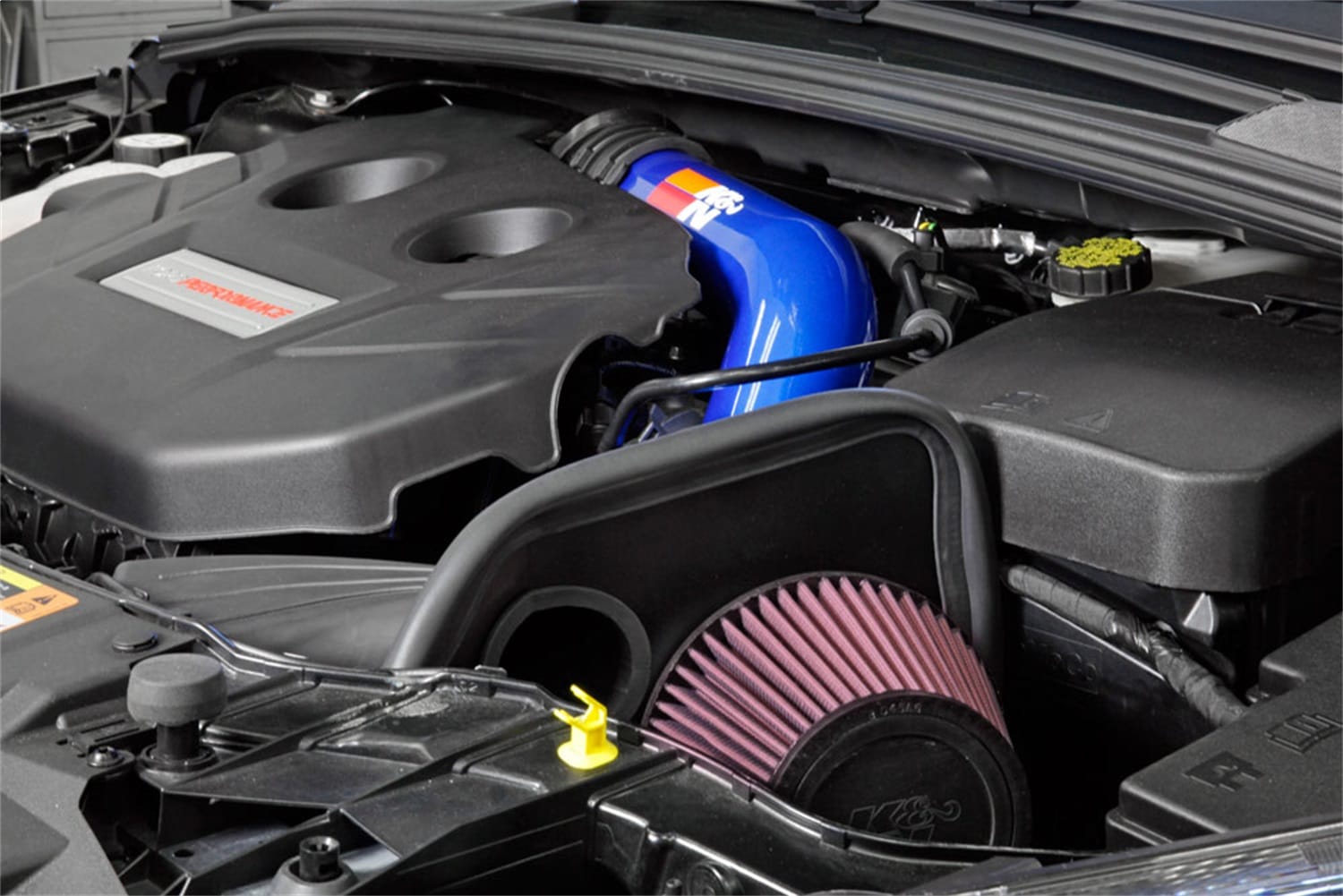

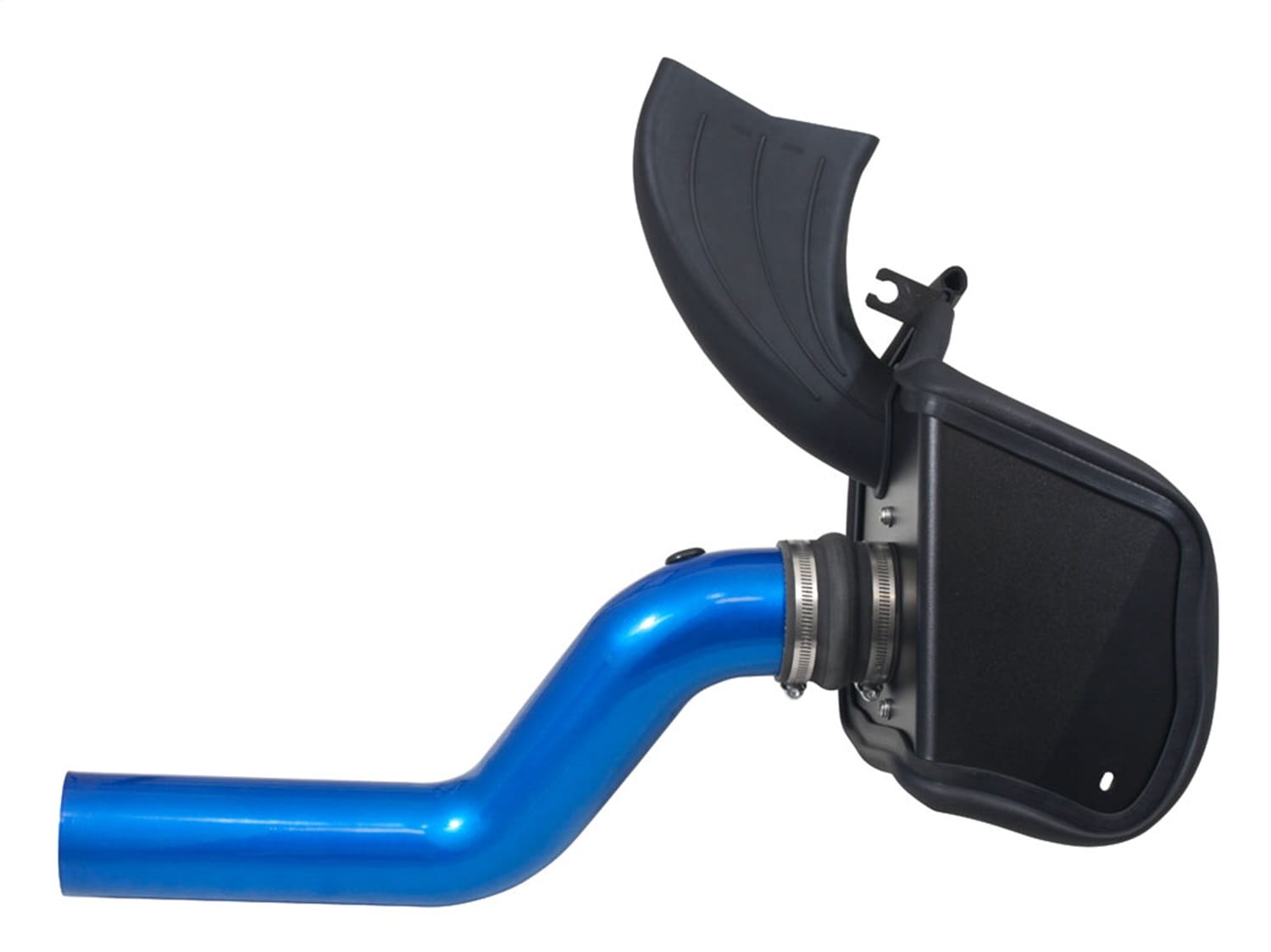

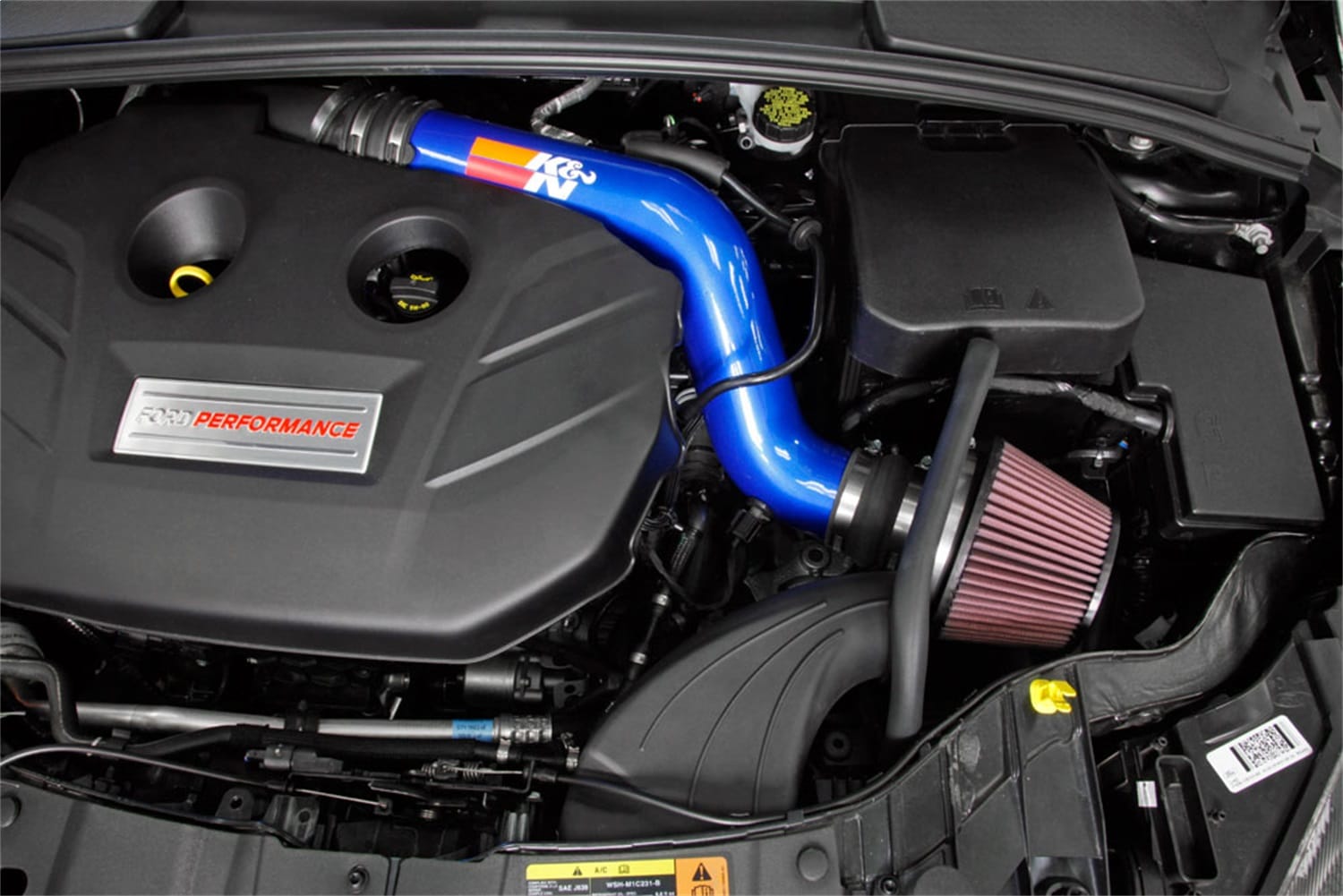

The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothens and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3539TB air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs using the factory mounting locations. A molded scoop funnels outside air towards the filter. Air is then directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish to match the car's badging and it accommodates the factory air pressure sensor. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Installation can be done using common tools.
Compatibility
This part is compatible with 3 vehicles
Specifications
- Brand
- K&N
- Category
- Air Intakes
- UPC
- 024844365255
- Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Shipping Dimensions
- 22.25 x 14.25 x 12.5 in
- Part Type
- Air Intake Kit
- Item Weight
- 9.400 lbs. (4.3 kg)
- Package Material
- Corrugated
- Package Type
- Box
- Product Box Height
- 12.500 in. (318mm)
- Product Box Length
- 22.250 in. (565mm)
- Product Box Width
- 14.250 in. (362 mm)
- Prop 65 (c, R Or Cr)
- CR
- Prop 65 Warning Label
- https://media.knfilters.com/prod/media/images/l/Prop65.jpg
- Title
- K&N 69-3539TB Performance Air Intake System
- Mounting Hardware Included
- Yes
- Filter Material
- Cotton Gauze
- Oil Included
- Filter Is Pre-Oiled
- Clamp Style
- Worm Gear
- Couplers Included
- 1
- Intake Pipe Material
- Aluminum
- California Restricted
- Not legal for sale or use in California
- Estimated Horse Power Gain
- 33.01 HP @ 4904 RPM
- Horse Power Increase
- 33 HP
- Rpm
- 4904
- Street Legal
- Yes
- Coupler Color
- Black
- Air Filter Element Washable
- Yes
- Air Box Included
- No
- Air Filter Outlet Shape
- Round
- Clamp Material
- Stainless Steel
- Replacement Filter
- RU-5163
- Tuv Approved (europe)
- No
- Intake Pipe Color
- Candy Blue Powder Coating
- Clamp Color
- Natural
- Clamp Quantity
- 3
- Filter Color
- Red
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- System Type
- Complete Cold Air
- Prop 65 (C, R Or CR)
- CR
- TUV Approved (Europe)
- No
