Air Intakes
Performance Air Intake System
Part #: 69-4510TS
Fits 2002-2005 across 2 makes, 7 vehicles
Description

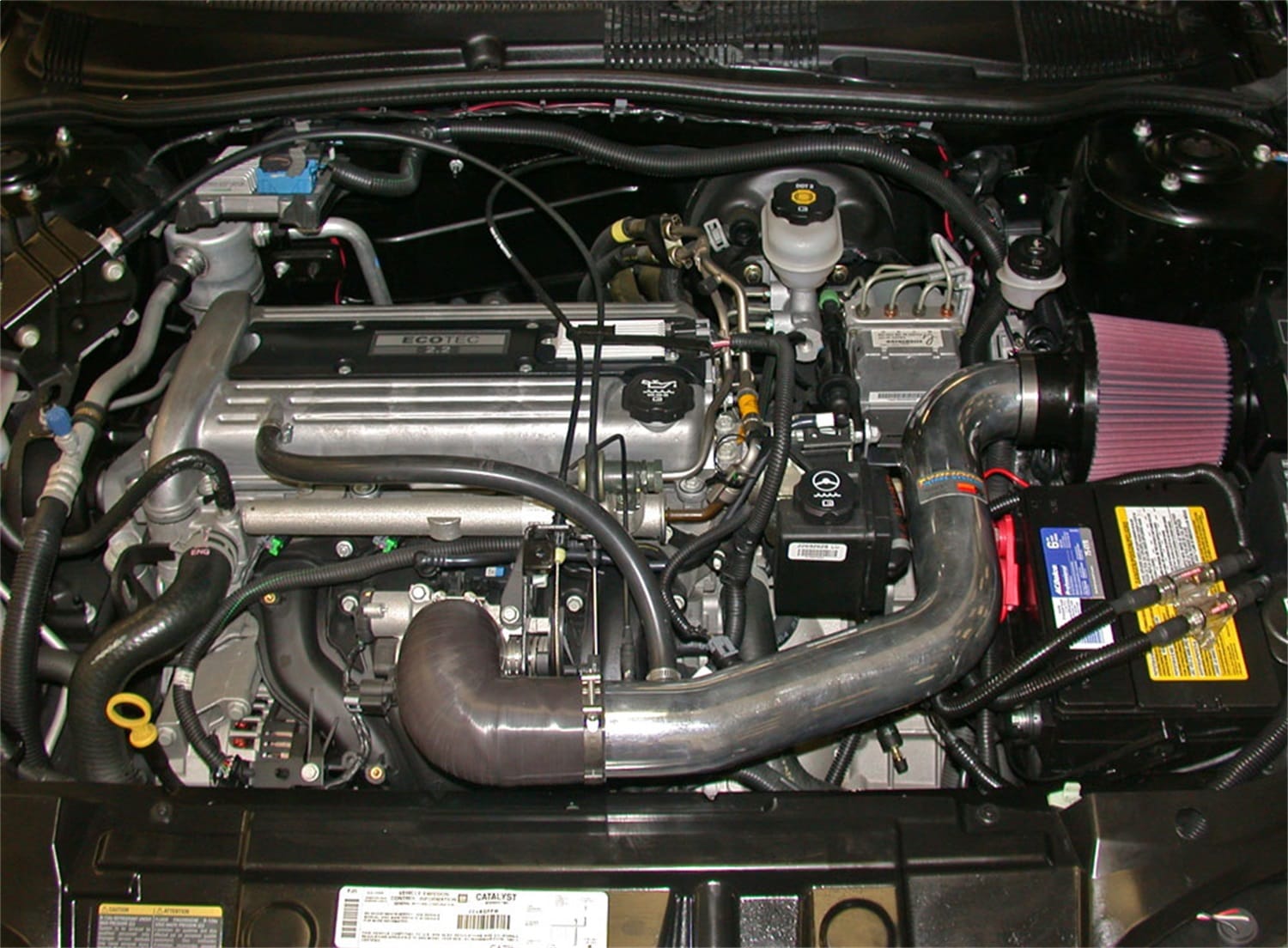

The K&N 69-4510TS Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Chevrolet Cavalier and Pontiac Sunfire models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-4510TS air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a couple of screwdrivers, pliers and a ratchet set. ach vehicle and air intake.
Compatibility
Specifications
- Brand
- K&N
- Category
- Air Intakes
- UPC
- 024844105783
- Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Shipping Dimensions
- 22.25 x 14.25 x 12.5 in
- Part Type
- Air Intake Kit
- Item Weight
- 6.400 lbs. (2.9 kg)
- Package Material
- Paperboard
- Package Type
- Box
- Prop 65 (c, R Or Cr)
- CR
- Prop 65 Warning Label
- https://media.knfilters.com/prod/media/images/l/Prop65.jpg
- Title
- K&N 69-4510TS Performance Air Intake System
- Mounting Hardware Included
- Yes
- Filter Material
- Cotton Gauze
- Oil Included
- Filter Is Pre-Oiled
- Clamp Style
- Regular
- Couplers Included
- 1
- Intake Pipe Material
- Aluminum
- Estimated Horse Power Gain
- 5.38 HP @ 5223 RPM
- Horse Power Increase
- 5 HP
- Rpm
- 5223
- Street Legal
- Yes
- Coupler Color
- Black
- Air Filter Element Washable
- Yes
- Air Box Included
- No
- Air Filter Outlet Shape
- Round
- Clamp Material
- Stainless Steel
- Replacement Filter
- RU-4960
- Tuv Approved (europe)
- No
- Intake Pipe Color
- Silver
- Clamp Color
- Natural
- Clamp Quantity
- 5
- Filter Color
- Red
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Air Filter Height
- 5.500 in. (140mm)
- Air Filter Large End Diameter
- 6.000 in. (152mm)
- Air Filter Outlet Length
- 2.750 in. (70mm)
- Air Filter Outlet Width
- 2.750 in. (70mm)
- Intake Pipe Inlet Length
- 30.000 in. (762mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 2.750 in. (70mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Length
- 30.000 in. (762mm)
- Intake Pipe Outlet Width
- 2.750 in. (70mm)
- System Type
- Short Ram
- Prop 65 (C, R Or CR)
- CR
- TUV Approved (Europe)
- No
