Air Intakes
Performance Air Intake System
Part #: 69-6030-1TFK
Fits 2004-2011 Mazda, 8 vehicles
Description

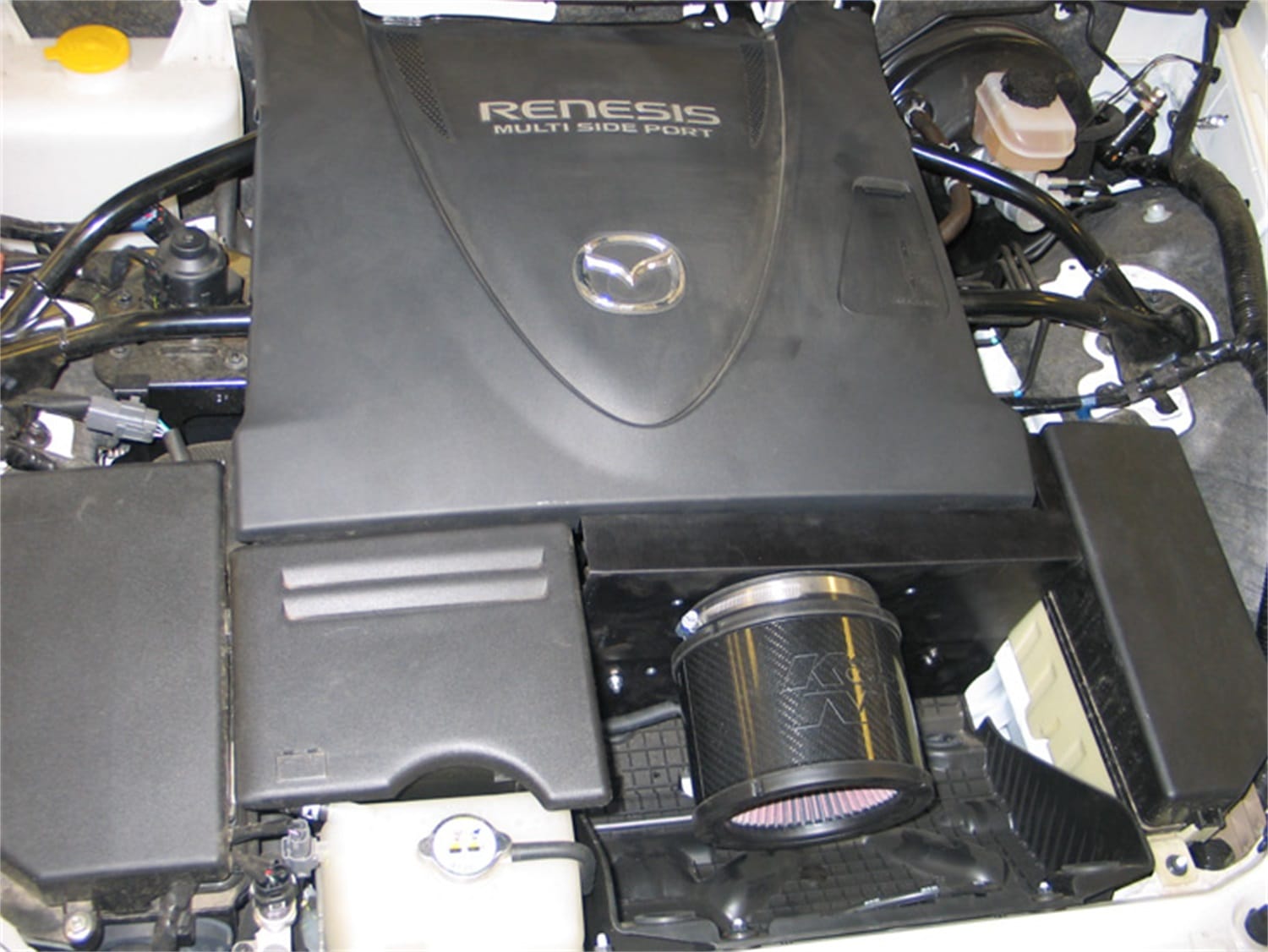

The K&N 69-6030-1TFK Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Mazda RX-8 models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-6030-1TFK air intake comes with a K&N high-flow air filter encased within an ultra-lightweight carbon fiber housing and a heat shield that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive flat black finish that's made to last and it accommodates the factory mass air sensor, air straightener and several vent lines. The oversized encased air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less. ach vehicle and air intake.
Compatibility
This part is compatible with 8 vehicles
Specifications
- Brand
- K&N
- Category
- Air Intakes
- UPC
- 024844112583
- Prop 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Shipping Dimensions
- 18.25 x 14.5 x 8.5 in
- Part Type
- Air Intake Kit
- Item Weight
- 7.800 lbs. (3.5 kg)
- Package Material
- Paperboard
- Package Type
- Box
- Prop 65 (c, R Or Cr)
- CR
- Prop 65 Warning Label
- https://media.knfilters.com/prod/media/images/l/Prop65.jpg
- Title
- K&N 69-6030-1TFK Performance Air Intake System
- Mounting Hardware Included
- Yes
- Filter Material
- Cotton Gauze
- Oil Included
- Filter Is Pre-Oiled
- Clamp Style
- Mini
- Couplers Included
- 2
- Intake Pipe Material
- Aluminum
- Estimated Horse Power Gain
- 11.15 HP @ 8660 RPM
- Horse Power Increase
- 11 HP
- Rpm
- 8660
- Coupler Color
- Black
- Air Filter Element Washable
- Yes
- Air Box Included
- No
- Air Filter Outlet Shape
- Round
- Clamp Material
- Stainless Steel
- Replacement Filter
- RU-5123
- Tuv Approved (europe)
- No
- Intake Pipe Color
- Flat Black
- Clamp Color
- Natural
- Clamp Quantity
- 6
- Filter Color
- Red
- Mass Air Flow Sensor Included
- Mass Air Flow Sensor Adapter Included When Required
- Air Filter Height
- 5.125 in. (130mm)
- Air Filter Outlet Length
- 5.375 in. (137mm)
- Air Filter Outlet Width
- 5.375 in. (137mm)
- Intake Pipe Inlet Length
- 13.000 in. (330mm)
- Intake Pipe Inlet Shape
- Round
- Intake Pipe Inlet Width
- 3.500 in. (89mm)
- Intake Pipe Outlet Shape
- Round
- Intake Pipe Outlet Length
- 13.000 in. (330mm)
- Intake Pipe Outlet Width
- 3.500 in. (89mm)
- System Type
- Cold Air
- Prop 65 (C, R Or CR)
- CR
- TUV Approved (Europe)
- No
